Container Batch Dryers

FDG600

Indirect Gas-Fired Dehydrator: Enhanced Efficiency & Control

The FDG600 Indirect Gas-Fired Dehydrator is Nyle’s answer for businesses seeking an efficient, large-capacity dehydration system. With the ability to remove significant moisture, it’s perfectly suited for various products, from fruits and vegetables to herbs and meats. The FDG600’s spacious chamber, accommodating up to 18 racks, offers a substantial 1170 sq ft of drying space, blending high efficiency with versatility.

Product Specifications

Operating Temperature

80°- 220°F ( 26°- 104°C )

Tray Capacity

360

Rack Capacity

18

Circulating Fans

One 25 HP Plug Fan

Electrical Connection

480V Three Phase, 50/60 Hz

Loading Size

15' 2" D x 5' 7" L x 6' 0" H

Footprint

25' 0" D x 6' 3" L x 11' 0" H

Heat Source

GHV1.6 - Indirect Gas

Product Load

1,170 Sq ft
*Load capacity is calculated based on standard rack dimensions of 26” x 20 3/8” x 69 1/2” with 3” layer spacing and 20 trays per rack.

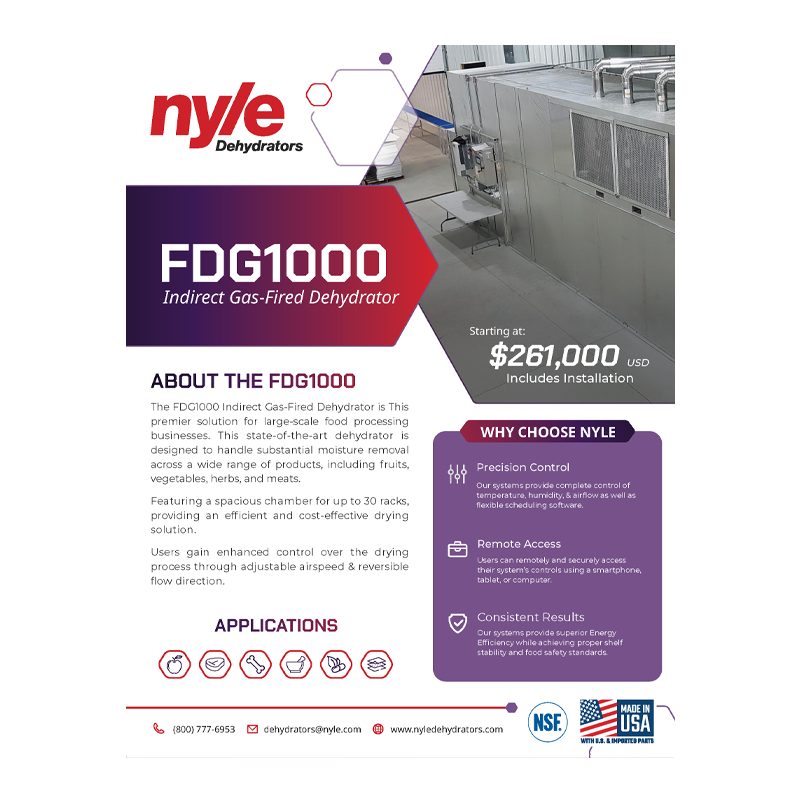

FDG1000

Indirect Gas-Fired Dehydrator: Superior Efficiency & Advanced Control

The FDG1000 Indirect Gas-Fired Dehydrator is Nyle’s premier solution for large-scale food processing businesses. This state-of-the-art dehydrator is designed to handle substantial moisture removal across a wide range of products, including fruits, vegetables, herbs, and meats.

Product Specifications

Operating Temperature

80°- 220°F ( 26°- 104°C )

Tray Capacity

600

Rack Capacity

30

Circulating Fans

One 25 HP Plug Fan

Electrical Connection

480V Three Phase, 50/60 Hz

Loading Size

24' 10" D x 5' 7" L x 6' 0" H

Footprint

34' 0" D x 6' 3" L x 11' 0" H

Heat Source

GHV1.6 - Indirect Gas

Product Load

1,950 Sq ft
*Load capacity is calculated based on standard rack dimensions of 26” x 20 3/8” x 69 1/2” with 3” layer spacing and 20 trays per rack.

User-Friendly and Advanced Technology

The FD24 Heat Pump Dehydrator combines precision drying with energy efficiency and user-friendly technology. It allows for exact control over temperature and humidity, ensuring consistent, high-quality drying results. This efficiency not only lowers operational costs but also aligns with eco-friendly practices. Simultaneously, the FD24 features an advanced touch-screen controller and remote monitoring capabilities, offering a convenient, technologically sophisticated solution. This combination of precise environmental control, energy savings, and easy-to-use, advanced technology positions the FD24 as an ideal choice for businesses seeking both performance and convenience.

Durable Design and Expert Support

Everything in a Nyle dehydrator unit can be replaced. This is not a disposable product. We know that people run even our smaller units well into their second decade, and we build them to last. In addition, we offer technical assistance over the phone. The people who build our machines handle service calls, so you get the straight talk when needed.

NSF Certified

At Nyle Dehydrators, we pride ourselves on providing top-quality dehydrators that meet the highest standards of safety and performance. All our dehydrators are NSF Certified, ensuring they comply with strict public health and safety standards. This certification guarantees that our products are safe for use in food processing and handling environments, giving you peace of mind and confidence in the quality and reliability of our equipment. Whether you're drying fruits, vegetables, or other food products, you can trust Nyle Dehydrators to deliver exceptional results every time. Choose our NSF Certified dehydrators for superior safety, hygiene, and efficiency.
How it Works

Nyle's Indirect Gas Fired vs. Direct Fired

Nyle's Indirect Gas-Fired Systems

The burner directs the combustible process into a radiant tube which acts as a heat exchanger. Air passing over the tube is heated before coming into contact with the product load. The by-products of combustion pass through the tube and is vented to the atmosphere through the chimney system, unlike a direct-fired system, which circulates the by-products of combustion through the product load.

Other Direct Gas-Fired Systems

The burner is directed straight into the air stream within the drying chamber, causing the by-products of combustion to mix with the recirculated air. This means that the recirculated air, now carrying the by- products of combustion, comes into contact with the product load, introducing potential challenges and considerations in the drying process.
