Commercial Batch Dryers

FD-Series Heat Pump Dehydrators precisely control

Nyle heat pump dehydration systems precisely control temperature, humidity, and dwell time to reduce product moisture content while maintaining quality characteristics such as color, texture, nutrients, and essential ingredients. Heat pumps are the perfect drying technology for applications including healthy snack foods, meats, seafood, and pet treats where low temperatures and humidity control are critical.

Each system includes a heat pump unit, an insulated drying chamber, air handling components, and PLC-based electrical controls with an operator screen. Heat pumps are very efficient and only need electric power to operate, eliminating the need for fossil fuels and associated airborne emissions.

FD24

FD24 Heat Pump Dehydrator: A Compact Powerhouse

The FD24 Heat Pump Dehydrator is engineered for businesses that demand high efficiency in a small footprint. Capable of removing up to 24 lbs of water per hour, this system is ideal for drying a variety of products, including fruits, vegetables, pet treats, and meats. Its compact design does not compromise on performance, making it a versatile solution for different drying needs.

Starting at:
$101,500.00
Includes Installation

Financing Available: Payments as low as $2,095/ Month.

Product Specifications

Water Removal Rate

24 (lbs/hr)

Operating Temperature

80°-180°F (26°-82°C)

Tray Capacity

160

Rack Capacity

8

Circulating Fans

Two 24", 1 HP

Electrical Connection

240V Single Phase, 60 Hz 480V Three Phase, 50 Hz 480V Three Phase, 60 Hz

Loading Size

8'2" D x 5'2" L x 6'0" H

Footprint

15'6" D x 5'10" L x 9'5" H

Heat Source

DH24 - Heat Pump

Electronic Sensors

1

Product Load

800 - 1,600 lbs wet product per batch
*Load capacity is calculated based on standard rack dimensions of 26” x 20 3/8” x 69 1/2” with 3” layer spacing and 20 trays per rack.

FD60

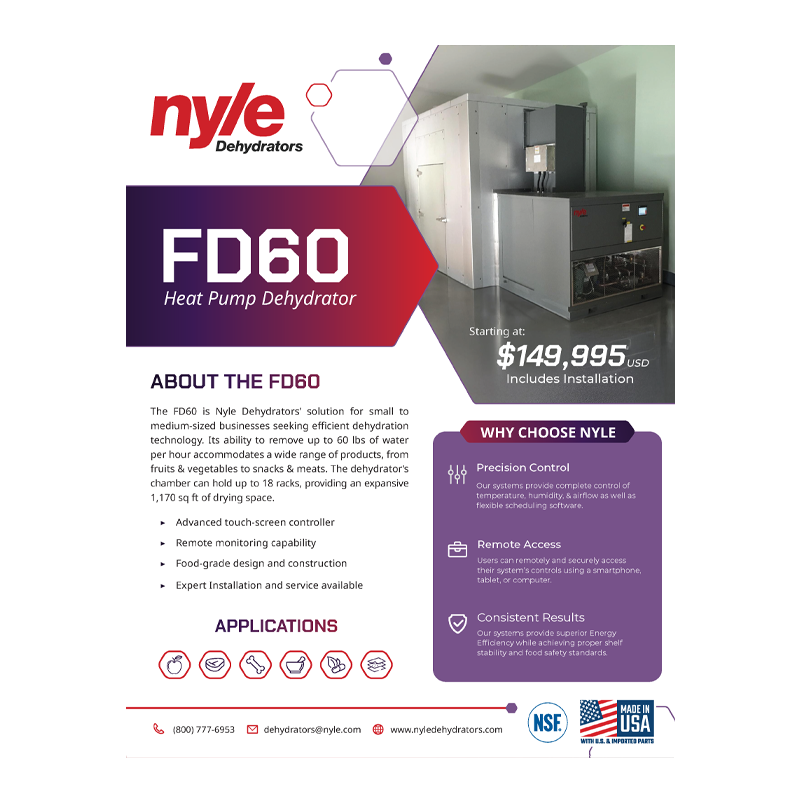

FD60 Heat Pump Dehydrator: Superior Capacity and Control

The FD60 is Nyle Dehydrators’ solution for small to medium-sized businesses seeking efficient dehydration technology. Its ability to remove up to 60 lbs of water per hour accommodates a wide range of products, from fruits and vegetables to snacks and meats. The dehydrator’s chamber can hold up to 18 racks, providing an expansive 1,170 sq ft of drying space.

Starting at:
$148,500.00
Includes Installation

Financing Available: Payments as low as $2,095/ Month.

Product Specifications

Water Removal Rate

60 (lbs/hr)

Operating Temperature

80°- 180°F ( 26°- 82°C )

Tray Capacity

360

Rack Capacity

18

Circulating Fans

Three 24", 1 HP

Electrical Connection

480V Three Phase, 50/60 Hz

Loading Size

13' 0" D x 7' 7" L x 6' 0" H

Footprint

22' 4" D x 8' 4" L x 10' 8" H

Heat Source

DH60 - Heat Pump

Electronic Sensors

2

Product Load

1,800 - 3,600 lbs wet product per batch
*Load capacity is calculated based on standard rack dimensions of 26” x 20 3/8” x 69 1/2” with 3” layer spacing and 20 trays per rack.

User-Friendly and Advanced Technology

The FD24 Heat Pump Dehydrator combines precision drying with energy efficiency and user-friendly technology. It allows for exact control over temperature and humidity, ensuring consistent, high-quality drying results. This efficiency not only lowers operational costs but also aligns with eco-friendly practices. Simultaneously, the FD24 features an advanced touch-screen controller and remote monitoring capabilities, offering a convenient, technologically sophisticated solution. This combination of precise environmental control, energy savings, and easy-to-use, advanced technology positions the FD24 as an ideal choice for businesses seeking both performance and convenience.

Durable Design and Expert Support

Everything in a Nyle dehydrator unit can be replaced. This is not a disposable product. We know that people run even our smaller units well into their second decade, and we build them to last. In addition, we offer technical assistance over the phone. The people who build our machines handle service calls, so you get the straight talk when needed.

NSF Certified

At Nyle Dehydrators, we pride ourselves on providing top-quality dehydrators that meet the highest standards of safety and performance. All our dehydrators are NSF Certified, ensuring they comply with strict public health and safety standards. This certification guarantees that our products are safe for use in food processing and handling environments, giving you peace of mind and confidence in the quality and reliability of our equipment. Whether you're drying fruits, vegetables, or other food products, you can trust Nyle Dehydrators to deliver exceptional results every time. Choose our NSF Certified dehydrators for superior safety, hygiene, and efficiency.

Sign up for our Newsletter

Sign up for our newsletter to stay updated on the latest innovations, tips, and news from Nyle Dehydrators.
Animated diagram showing how Nyle heat pump dehydrators work

Energy-Saving Heat Pumps for Maximum Efficiency

Nyle’s heat pumps are built to save energy and reduce costs. By capturing and reusing heat that would otherwise be lost, our systems offer an eco-friendly solution for various industries. These heat pumps help businesses lower their energy use while maintaining smooth and reliable operations. With Nyle, companies can achieve both financial savings and environmental benefits.
  • Energy Efficiency: Recycles waste heat, reducing energy consumption and costs.
  • Eco-Friendly: Lowers carbon footprint, contributing to sustainability efforts.
  • Reliable Performance: Delivers consistent, high-quality results for various industrial applications.

How Nyle's Heat Pump System Works

Heat Pump dehydrators work differently than conventional dryers. For both systems, the air is heated to the desired drying temperature and then circulated over the product to absorb moisture.

However, instead of exhausting this hot, moist air as typical conventional dryers would, heat pump dehydrators draw the air over the cold coil of a refrigeration system, where the moisture is condensed from the air and drained away.

The air is then drawn over the hot coil of the system to reheat it and sent back over the wet product.

This cycle repeats until the product has reached the desired moisture content. During this process, the energy used is only what is necessary to operate the compressor, blower, and circulating fans, resulting in up to 60% less energy than conventional dryers.

Support and Service

Our dedicated service and support team is here to assist you with expert guidance and quick solutions whenever you need them.

1 year Warranty

Our 1-year warranty ensures long-lasting reliability and peace of mind for your Nyle dehydrator.

Touchscreen Controls

Our touchscreen controls allow for easy scheduling, monitoring, and remote access to ensure precise drying.

Get Started Today

Contact a dehydration expert today to get started.
